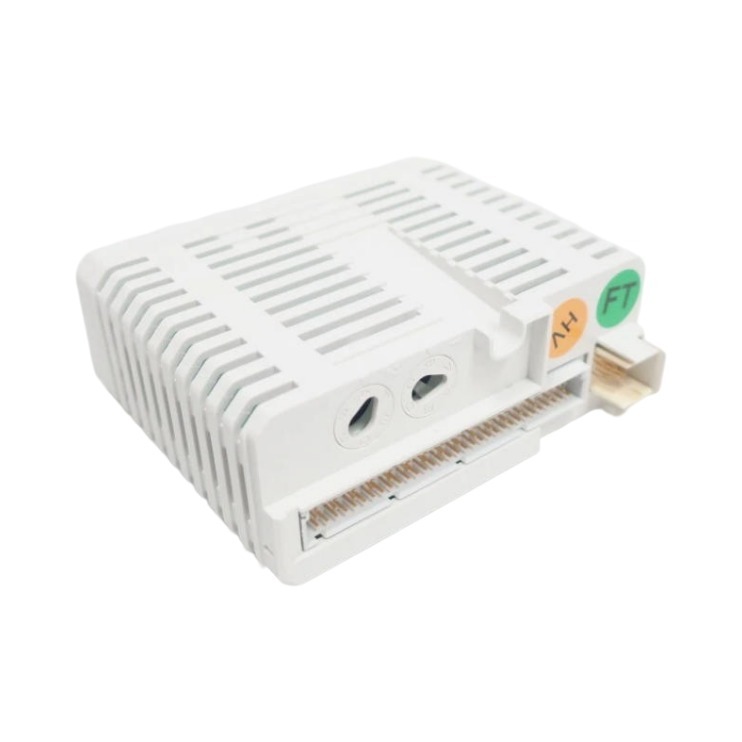

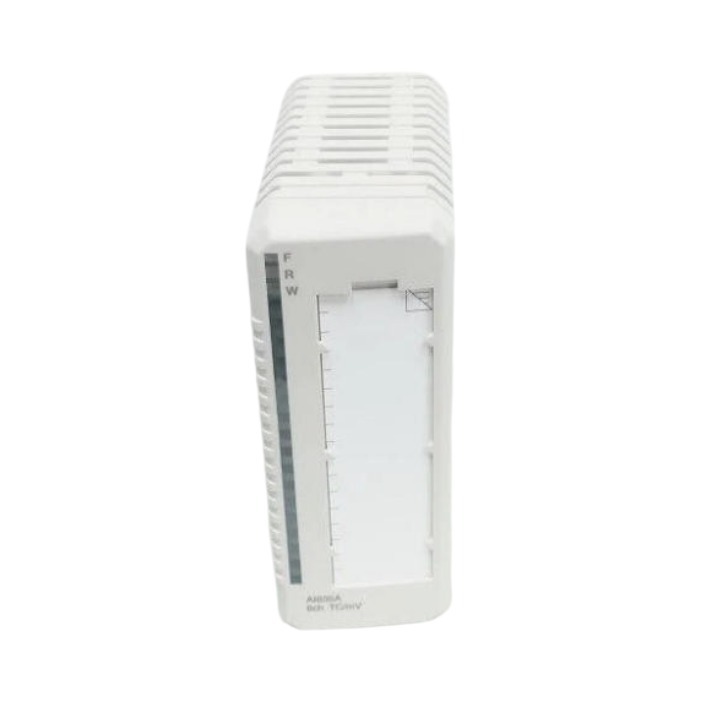

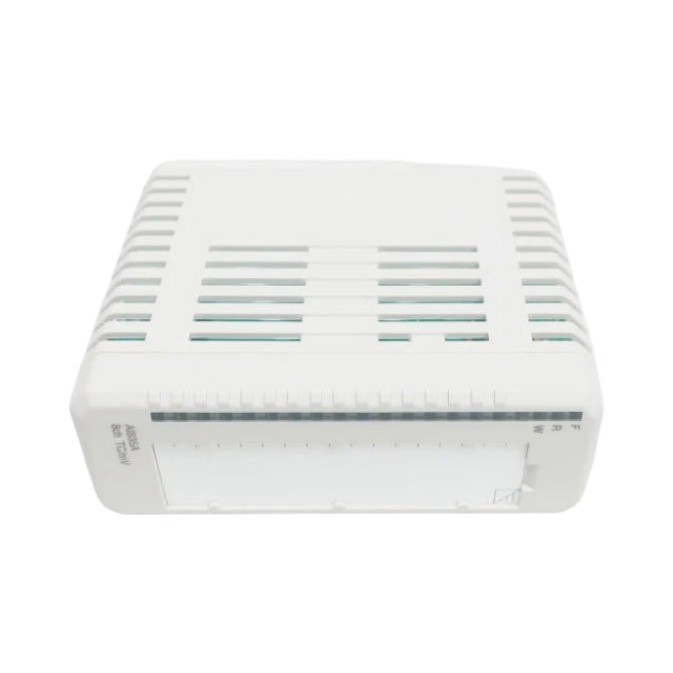

ABB AI835A Analog Input Module for S800 I/O Systems

The ABB AI835A Analog Input Module is designed for the ABB S800 I/O platform, providing 8 differential input channels for thermocouple and millivolt (mV) signal measurement. Each channel can be configured individually to measure -30 mV to +75 mV linear signals or a wide range of thermocouple types, including B, C, D, E, J, K, L, N, R, S, T, and U.

One of the module's key features is Channel 8, which can be configured as a Cold Junction (CJ) compensation channel using a 4-wire Pt100 RTD, or used as a standard measurement channel when CJ compensation is not required. With 15-bit A/D resolution and built-in wire-break detection, the AI835A supports accurate temperature measurement and reliable signal monitoring for industrial process automation applications. It is suitable for new installations, system upgrades, and replacement projects within ABB S800 I/O systems.

• Flexible Temperature Measurement - The AI835A supports multiple thermocouple types and millivolt inputs, allowing a single module to accommodate different temperature measurement requirements across a wide range of industrial processes.
• Integrated Cold Junction Compensation - By allowing Channel 8 to function as a dedicated Cold Junction compensation channel, the module helps improve the accuracy of thermocouple measurements without requiring additional external compensation devices.
• Reliable Signal Monitoring - With 15-bit resolution and integrated wire-break detection, the AI835A helps maintain stable measurement quality while allowing maintenance personnel to identify open-circuit conditions quickly, supporting reliable process operation.

• Gas Turbine Static Starter Systems
• Power Generation Plants
• Heavy Industrial Motor Starting
• Oil & Gas Facilities
• Petrochemical Plants
• Industrial Drive Systems
• Electrical Power Conversion Equipment

During the modernization of a process control system, an ABB AI835A module was installed to replace an older temperature input module. The upgrade enabled reliable thermocouple signal acquisition and simplified cold junction compensation while maintaining compatibility with the existing S800 I/O architecture.

• Export to 40+ countries
• Complete after-sales service
• Stable supply chain to ensure continuous supply
• COO, COC and CQ support
• Rapid quotation response

• Professional installation required for optimal performance and safety
• Ensure proper mounting and adequate ventilation
• Comply with all applicable electrical safety standards
