GE DS200TCQBG1B Extended Analog I/O Board with 2kg Weight 1year Warranty and 50-pin Connector for Turbine Control Systems
| उत्पत्ति के प्लेस | हम |
|---|---|
| ब्रांड नाम | GE |
| मॉडल संख्या | डीएस200टीसीक्यूबीजी1बीसीबी |
| न्यूनतम आदेश मात्रा | 1PC |
| मूल्य | $2000 |
| पैकेजिंग विवरण | नया और मूल कारखाना, व्यक्तिगत बॉक्स पैकिंग |
| प्रसव के समय | 5-7 दिन |
| भुगतान शर्तें | टी/टी |
| आपूर्ति की क्षमता | 999PCS |
नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| नाम | GE DS200TCQBG1B DS200TCQBG1BCB विस्तारित एनालॉग I/O बोर्ड | उत्पाद आयडी | डीएस200टीसीक्यूबीजी1बीसीबी |
|---|---|---|---|
| शृंखला | मार्क वी | समारोह | असतत आउटपुट पैक |
| उत्पाद शुद्ध गहराई/लंबाई | 330 मिमी | उत्पाद शुद्ध ऊंचाई | 200 मिमी |
| उत्पाद शुद्ध चौड़ाई | 100 मिमी | उत्पाद निवल भार | 2 किलो |
| गारंटी | 1 वर्ष | ||
| प्रमुखता देना | 2kg Weight Extended Analog I/O Board,1year Warranty Analog I/O Board,50-pin Connector I/O Board |
||
उत्पाद विवरण

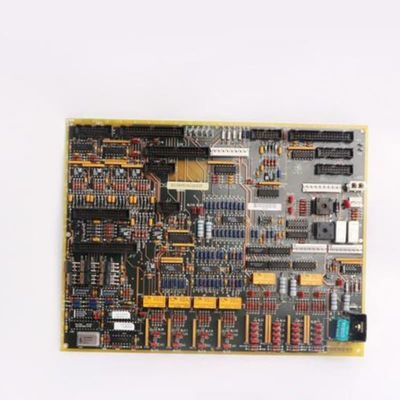

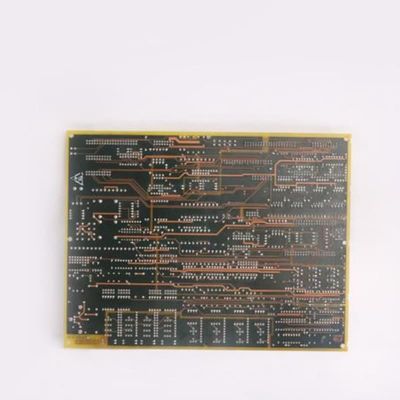

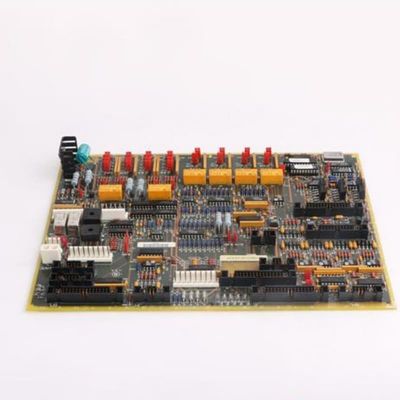

GE DS200TCQBG1B DS200TCQBG1BCB Extended Analog I/O board
The GE DS200TCQBG1BCB is an Extended Analog I/O Board designed for the Mark V Series, a Speedtronic technology-based control system used in wind, steam, and gas turbine management. As an upgraded variant of the parent DS200TCQBG1 board, it incorporates a sole B-rated functional revision, enhancing its compatibility and performance within turbine control systems. Classified as a critical printed circuit board (PCB) in GE’s official documentation, it expands the Mark V’s I/O capabilities, supporting seamless integration with turbine assemblies to ensure precise monitoring and control.
Key Features:
Core Hardware Components
The board is equipped with essential components: a programmable logic device, EPROM modules (storing firmware and processing programs), 1 visible OK LED for status checks, a 50-pin connector for signal routing, and 15 jumpers for configuration.
EPROM Handling Protocols
GE specifies strict procedures for EPROM transfer to prevent damage: use a flat-blade screwdriver to remove modules, avoid contact with other components, and wear a wrist strap to dissipate static (EPROMs are static-sensitive). Modules must be stored in static-protective bags, pre-grounded by touching the drive’s exterior to discharge static. During installation, align modules with sockets and press firmly to ensure a gap-free connection, preserving firmware integrity.
Informative Part Number
The DS200TCQBG1B part number encodes key details: DS200 series tag (indicating normal Mark V assembly and domestic manufacturing), “TCQB” functional abbreviation, standard PCB protective coating, Group One classification, and the B-rated functional revision.
Turbine-Specific Versatility
Designed for the Mark V Series, it supports diverse turbine types (wind, steam, gas) by extending analog I/O functions. Its hardware configuration, including jumpers and connectors, enables tailored integration with turbine control logic, ensuring reliable data processing and signal transmission critical for efficient turbine operation and safety.
