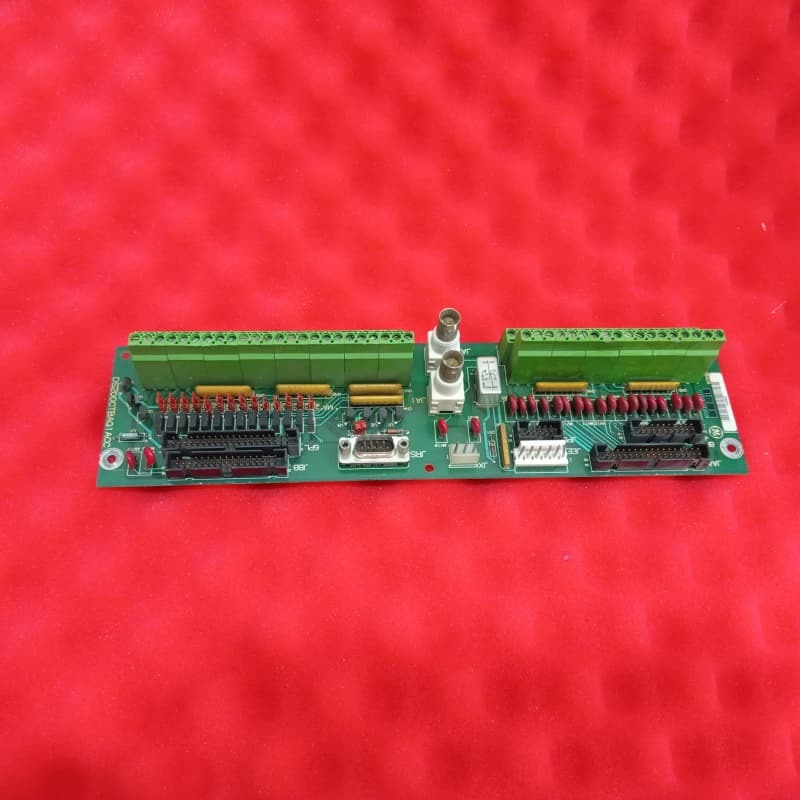

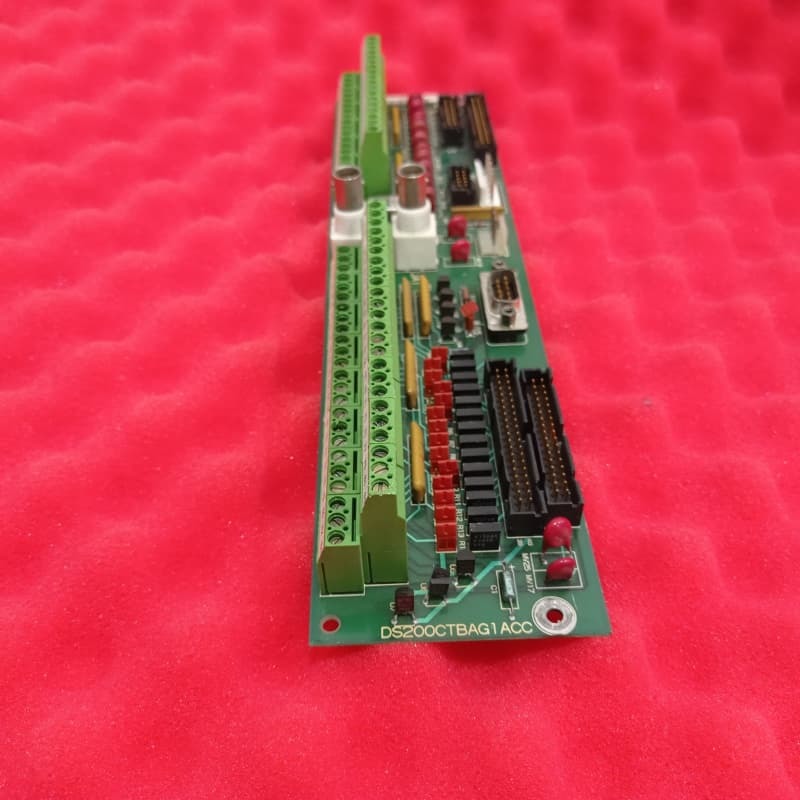

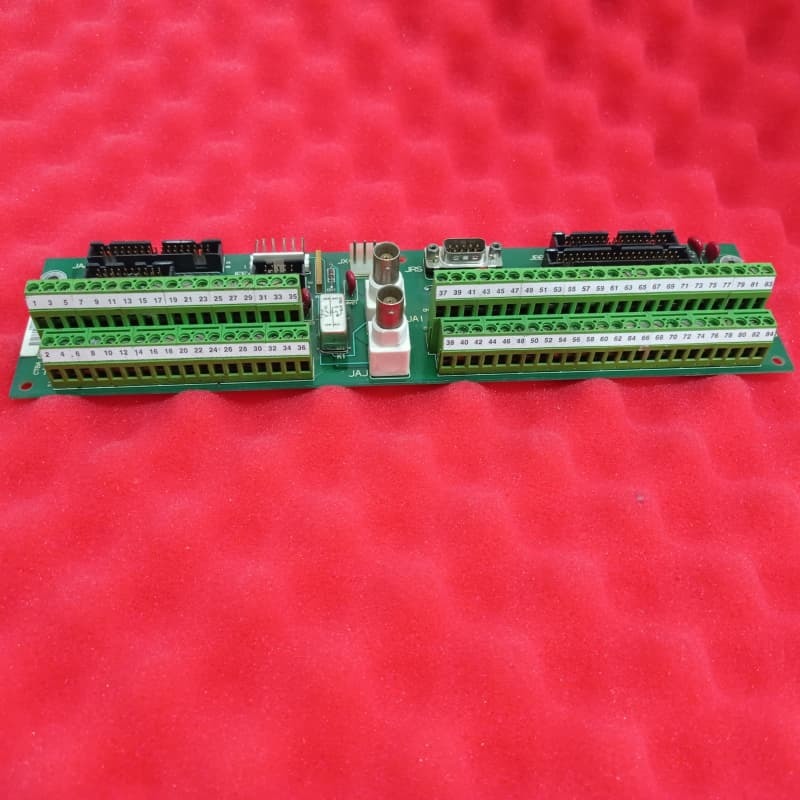

GE Mark V DS200CTBAG1A Analog Termination Module 330mm x 100mm
| उत्पत्ति के प्लेस | यूएसए |
|---|---|
| ब्रांड नाम | GE |
| प्रमाणन | COO |
| मॉडल संख्या | DS200CTBAG1A |
| न्यूनतम आदेश मात्रा | 1 |
| मूल्य | $1000 |
| प्रसव के समय | 5-7 दिन |
| भुगतान शर्तें | टी/टी |
| आपूर्ति की क्षमता | 999 |
नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| नाम | GE MARK V DS200CTBAG1A एनालॉग टर्मिनेशन मॉड्यूल | उत्पाद आयडी | DS200CTBAG1A |
|---|---|---|---|
| शृंखला | मार्क वी | उत्पाद शुद्ध गहराई/लंबाई | 330 मिमी |
| उत्पाद शुद्ध चौड़ाई | 100 मिमी | उत्पाद शुद्ध ऊंचाई | 200 मिमी |
| उत्पाद निवल भार | 2 किलो | गारंटी | 1 वर्ष |
| प्रमुखता देना | GE Mark V termination module,DS200CTBAG1A analog module,GE turbine control module 330mm |
||
उत्पाद विवरण
GE DS200CTBAG1A ANALOG TERMINATION MODULE
Product Description:
The GE DS200CTBAG1A is an Analog Termination Board (CTBA) exclusively designed for SPEEDTRONIC Mark V LM Turbine Control systems—used to manage wind, steam, and gas turbine automated drives, and part of GE’s final Mark series leveraging its patented Speedtronic technology. As a termination board for the system’s common data processor, it resides in the Mark V’s C/R5 core, facilitating critical signal transmission and power monitoring.
Key functions include handling 4-20 mA inputs/outputs, IONET/ARCNET communication links, and shaft voltage/current signals. It features an RS-232 9-pin D-shell port for TIMN diagnostics, 23 red varistors for voltage suppression, 7 diodes, and resistors/capacitors for residual voltage limitation. Physically, it has two factory-drilled holes per short end for mounting and a range of Mark V-compatible connectors — with the 6PL connector as an unused vestige. It includes 15 hardware jumpers for customization and has a single A-rated functional revision. A bypass relay ensures COREBUS communication if power is lost, and unused COREBUS connectors require termination resistors.
Features:
Comprehensive Signal Management: Handles 4-20 mA I/O, IONET/ARCNET communication, and shaft voltage/current signals, serving as a central termination hub for the system’s common data processor.
Diagnostic & Protective Components: Includes an RS-232 port for TIMN diagnostics, varistors/diodes/resistors for voltage suppression/limitation, and a bypass relay for COREBUS communication redundancy.
Configurable Jumpers: 15 jumpers enable custom signal routing, adapting to specific turbine control needs.
Mark V Connector Ecosystem: Features dedicated connectors for interfacing with other Mark V boards, with clear guidelines for unused connectors.
Secure Mounting: Factory-drilled holes ensure stable installation in the system’s core, maintaining reliability in industrial turbine environments.
Technical Parameters:
| Name: | GE Mark V DS200CTBAG1A ANALOG TERMINATION MODULE |
| Product ID: | DS200CTBAG1A |
| Series: | Mark V |
| Product Net Height: | 200mm |
| Product Net Depth/Length: | 330mm |
| Product Net Width: | 100mm |
| Product Net Weight: | 2kg |
| Warranty: | 1 Year |
