GE IS200TDBTH6ACD Discrete I/O Terminal Board for Turbine Control
| Place of Origin | US |
|---|---|
| ब्रांड नाम | GE |
| प्रमाणन | COO |
| Model Number | IS200TDBTH6ACD |
| Minimum Order Quantity | 1pc |
| मूल्य | $7000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| Name | GE IS200TDBTH6ACD Discrete Input/Output Terminal Board | Product ID | IS200TDBTH6ACD |
|---|---|---|---|
| Series | Turbine Specific Primary Trip Board | Function | Discrete Input/Output Terminal Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| प्रमुखता देना | GE turbine control terminal board,discrete I/O terminal board,IS200TDBTH6ACD turbine control board |
||
उत्पाद विवरण

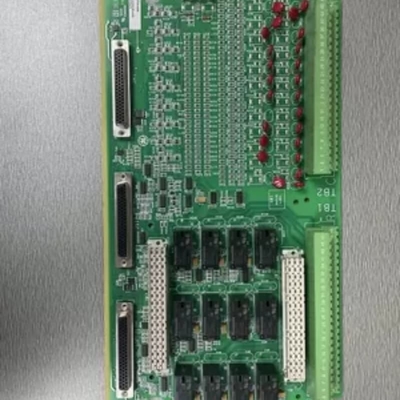

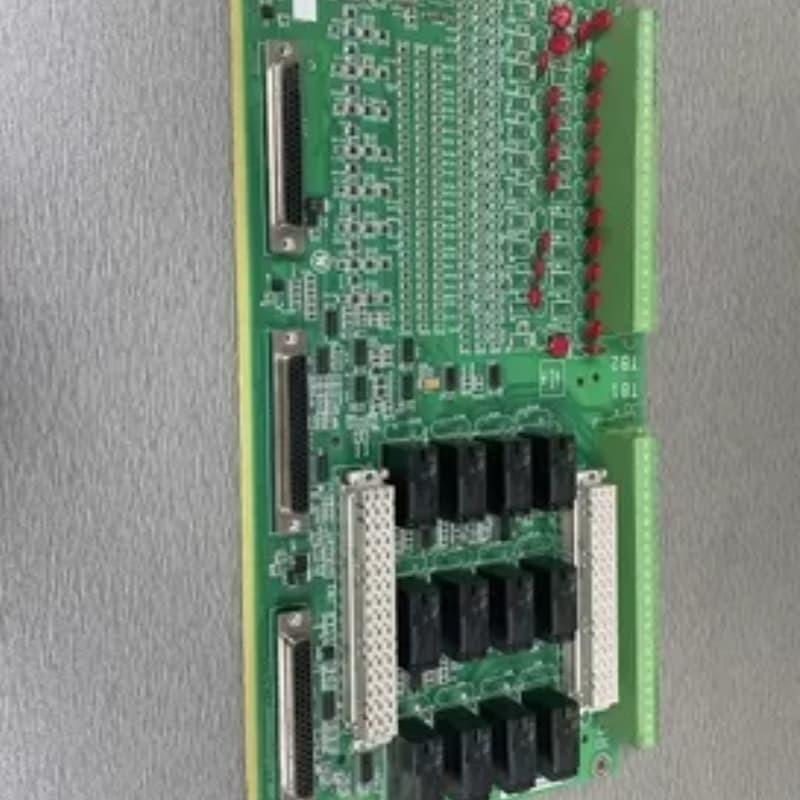

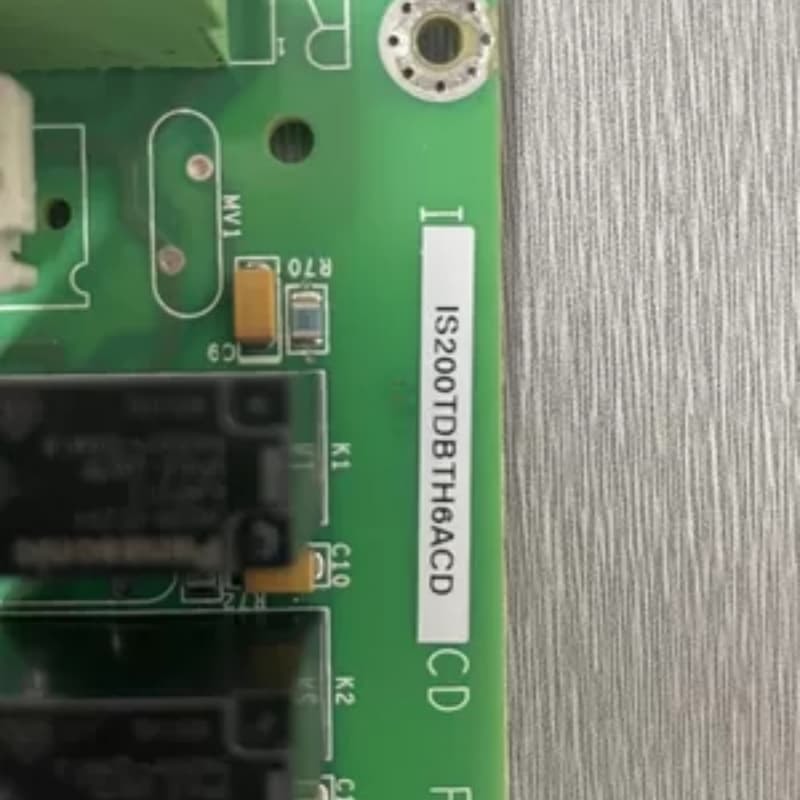

GE IS200TDBTH6ACD Discrete Input/Output Terminal Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200TDBTH6ACD Discrete Input/Output Terminal Board |
| Product ID | IS200TDBTH6ACD |
| Series | Turbine Specific Primary Trip Board |
| Function | Discrete Input/Output Terminal Board |
| Dimensions (L x W x H) | 330mm x 100mm x 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Description
The GE IS200TDBTH6ACD is a discrete input/output terminal board in GE's Mark VI Series, designed for distributed control systems. This industrial-grade component supports TMR (Triple Modular Redundancy) and offers flexible flat or DIN-rail mounting options.
Key features include:
- 24 group-isolated contact inputs supporting 24, 48, or 125 V DC wetting voltage
- Built-in noise suppression for protection against surges and high-frequency interference
- 12 form-C relay outputs with option card support for expanded functionality
- Compatibility with PDIO I/O packs via D-type connectors
- Ethernet communication supporting three PDIO units in TMR configurations
- Simple installation via sheet metal carriers (DIN rail or cabinet-mounted)
- 48 terminal blocks (TB1 for relays, TB2 for inputs) using 18 AWG wires
- Jumper-free main board with six optional jumpers on the expansion card
Ideal for industrial environments requiring reliable discrete signal management in demanding applications.
